Corner Deck Stair Calculator - Wrap-Around 3-Sided Stairs
Optimize the construction of corner deck stairs with our Online 3D Corner Deck Stair Calculator. Designed to precisely calculate both jack and hip stringer lengths for 3-sided stairs, this tool ensures that every piece fits perfectly, enhancing both the functionality and aesthetic of your deck. Leverage our interactive 3D viewer to make real-time adjustments and see your stair design come to life. Ideal for both professional deck builders and DIY enthusiasts seeking accurate measurements and streamlined project execution.
How to Use This Tool
Enter the deck height and tread specs
Measure from finished deck surface to grade and enter it as the total rise, then set your tread depth and riser target. The calculator divides the rise into equal risers just like a straight flight.
Set the wrap configuration
Choose which deck corner the stairs wrap around and how far along each side they extend. The tool lays out the 3-sided stair so treads cascade around the corner at a consistent riser height.

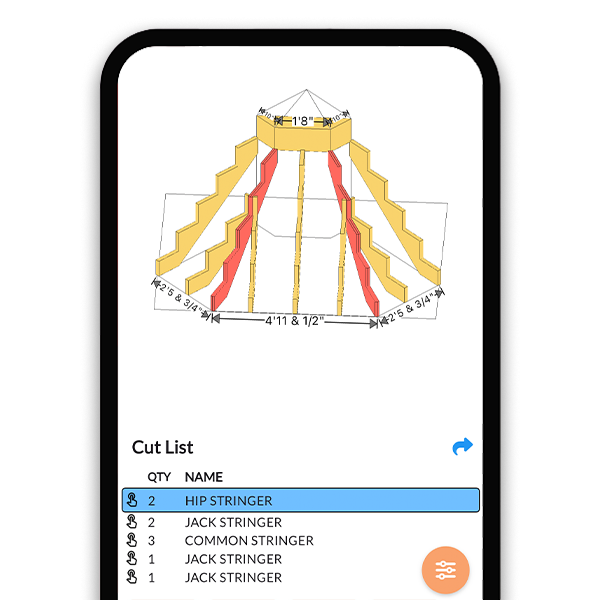

Read the jack and hip stringer lengths
The calculator returns the length of every jack stringer and the longer hip stringers at the corners - the hips run on the diagonal, so their per-step run is the tread depth times sqrt(2). Check the layout in the 3D viewer.
Export the stringer plans
Print or export the blueprint showing each stringer position and length so you can cut the full set - jacks and hips - before assembly.
Corner stair stringer math
Wrap-around (3-sided) deck stairs use the same riser arithmetic as any flight: riser count = total rise / 7.5 rounded, exact riser = rise / count.
The jack stringers perpendicular to each deck face are standard: sqrt(rise squared + run squared). The hip stringers at each corner run at 45 degrees, so each step advances tread x sqrt(2) horizontally - about 14.14 inches of run per 10 inch tread - making the hips noticeably longer than the jacks for the same rise.
riser count = round(total rise / 7.5)
exact riser = total rise / riser count
jack stringer = sqrt(rise^2 + (tread x treads)^2)
hip run per step = tread depth x sqrt(2) = tread x 1.414
hip stringer = sqrt(rise^2 + (tread x 1.414 x treads)^2)
Frequently Asked Questions
What are wrap-around or 3-sided deck stairs?
Stairs that cascade off two or three sides of a deck and turn the corner continuously, so you can step down from any direction. Each corner needs a hip stringer running at 45 degrees where the two runs of treads meet, plus regular jack stringers along each face. They read like a wide, welcoming porch detail - and the corner geometry is exactly what this calculator solves.
Why are hip stringers longer than jack stringers?
The hip runs diagonally across the corner at 45 degrees in plan, so for every step it must travel the tread depth in both directions at once - a horizontal run of tread x sqrt(2), about 14-1/8 inches per 10 inch tread. Same rise, longer run, longer hypotenuse. On a 3-riser corner stair with 10 inch treads (total run 30 inches, total rise 21.6 inches at 7.2 inch risers), jacks run about 37 inches while the hip needs sqrt((30 x 1.414)^2 + 21.6^2), roughly 47-1/2 inches of stock.
Do deck stairs have to meet the same code as interior stairs?
Yes - under the IRC, exterior stairs follow the same limits: risers 7-3/4 inches max, treads 10 inches min, 3/8 inch max variance, and guards where the deck surface is more than 30 inches above grade. One extra wrinkle: measure the bottom riser from finished grade or a landing pad, and remember frost heave can change that height. Always verify with your local building department.
How many stringers do wrap-around deck stairs need?
Space jack stringers 16 inches on center or less along every face for 5/4 decking treads (some composite tread manufacturers require 12 inches or less - check the span rating), plus one hip stringer at each corner. A stair wrapping two 8-foot sides of a corner can easily need a dozen stringers. The calculator returns the exact count and each individual length so you can order lumber in one trip.
What do I put at the bottom of wrap-around deck stairs?
A solid landing surface at every point where the stairs meet grade - typically a concrete pad, pavers on compacted base, or gravel with a treated sleeper. The IRC requires a landing at least 36 inches deep at the bottom of exterior stairs, and the grade should slope away for drainage. Because wrap stairs discharge along their whole perimeter, plan the pad to follow the full footprint.
Can I build wrap-around stairs on an uneven yard?
Yes, but every riser must still land within 3/8 inch of the others, measured to finished grade at the bottom step. On sloped yards that usually means cutting the grade level, pouring a stepped pad, or adding a box-frame bottom step on the low side. Measure the rise at the worst corner and design to it. The 3D viewer helps you spot where the bottom step height drifts before you cut.
